Thermal Stability Testing Machine For The Insulation And Sheath Test Of Polyvinyl Chloride Mixture

Name: Thermal Stability Testing Machine For The Insulation And Sheath Test Of Polyvinyl Chloride Mixture
Brand: Daxian
Price: 1 USD

China Thermal Stability Testing Machine For The Insulation And Sheath Test Of Polyvinyl Chloride Mixture wholesale

Brand Name : Daxian

Model Number : DX8485

Certification : GB/T2951.7

Place of Origin : China

MOQ : One set

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash

Supply Ability : 15 sets per month

Delivery Time : 15 work days

Packaging Details : Wooden Case

Standard : GB/T2951.7、UL758、 UL1581、 UL62、 ASTM、 GB-1690、IEC811、VDE0281

Temperature range : room temperature ~ 250°C

Temperature resolution : 0.1°C

Timer : 0~99H

Working power supply : AC220V/50Hz

Heater power : 3.5KW

Contact Now

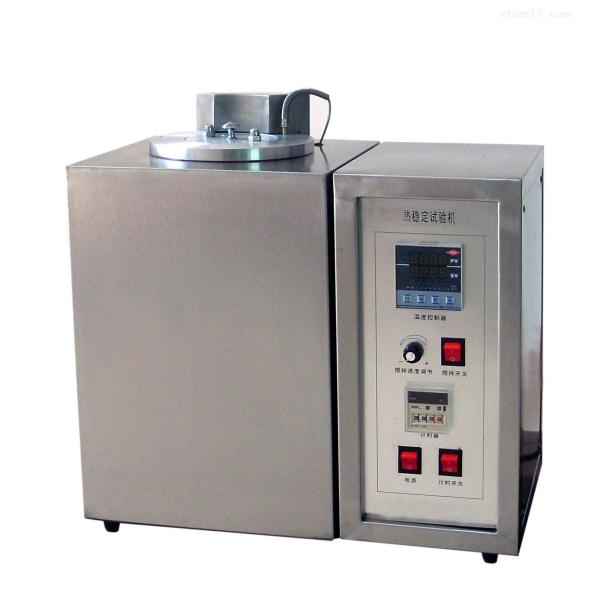

DX8485 Thermal Stability Tester

Thermal Stability Testing Machine For The Insulation And Sheath Test Of Polyvinyl Chloride Mixture

Standards: Made in accordance with GB/T2951.7 "Thermal Stability Test of Insulation and Sheathing", in line with UL758, UL1581, UL62, ASTM, GB-1690, IEC811, VDE0281 test standards.

Scope of application: It is mainly used for the insulation and sheath test of polyvinyl chloride mixture for wires and cables.

Technical Parameters:

1. Temperature range: room temperature ~ 250°C.

2. Temperature resolution: 0.1°C

3. Timer: 0~99H.

4. Working power supply: AC220V/50Hz

5. Heater power: 3.5KW

6. Test oil: 2# lubricating oil and insulating oil are used. (Bring your own)

7. Outer carton size: 350 (length), × 300 (width), × 250 mm (height)

8. Inner size: 27L

9. Glass tube: 110mm long, 5mm outer diameter, 4mm inner diameter sealed at one end

10. PH value test strip: 1~7PH
